Rain Bird Spray head plastic 5/8" UNC female thread 2.1bar 0-360° brown type 12-VAN
Product number: 7008126
Manuals & drawings
Frequently bought together
Technical details
-
Capacity2,25 - 5,8 l/min
-
Rec. press.1.0 - 2.1 bar
-
ConnectionUNC female thread
-
Capacity 2 bar590 l/h
-
Suitable for1800 & Uni-Spray series
-
Radius2,7 - 3,7 m
-
Radius 2bar3,6 m
-
Materialplastic
-
Sector adj. range0-360°
-
Size5/8"
-
Capacity 2bar150-590 l/h
-
Pressure2.1 bar
-
Capacity0,14 - 0,35 m³/h
-
Angle15 °
-
EAN4019305332781
-
Part number7008126
-
ManufacturerRain Bird
Product description

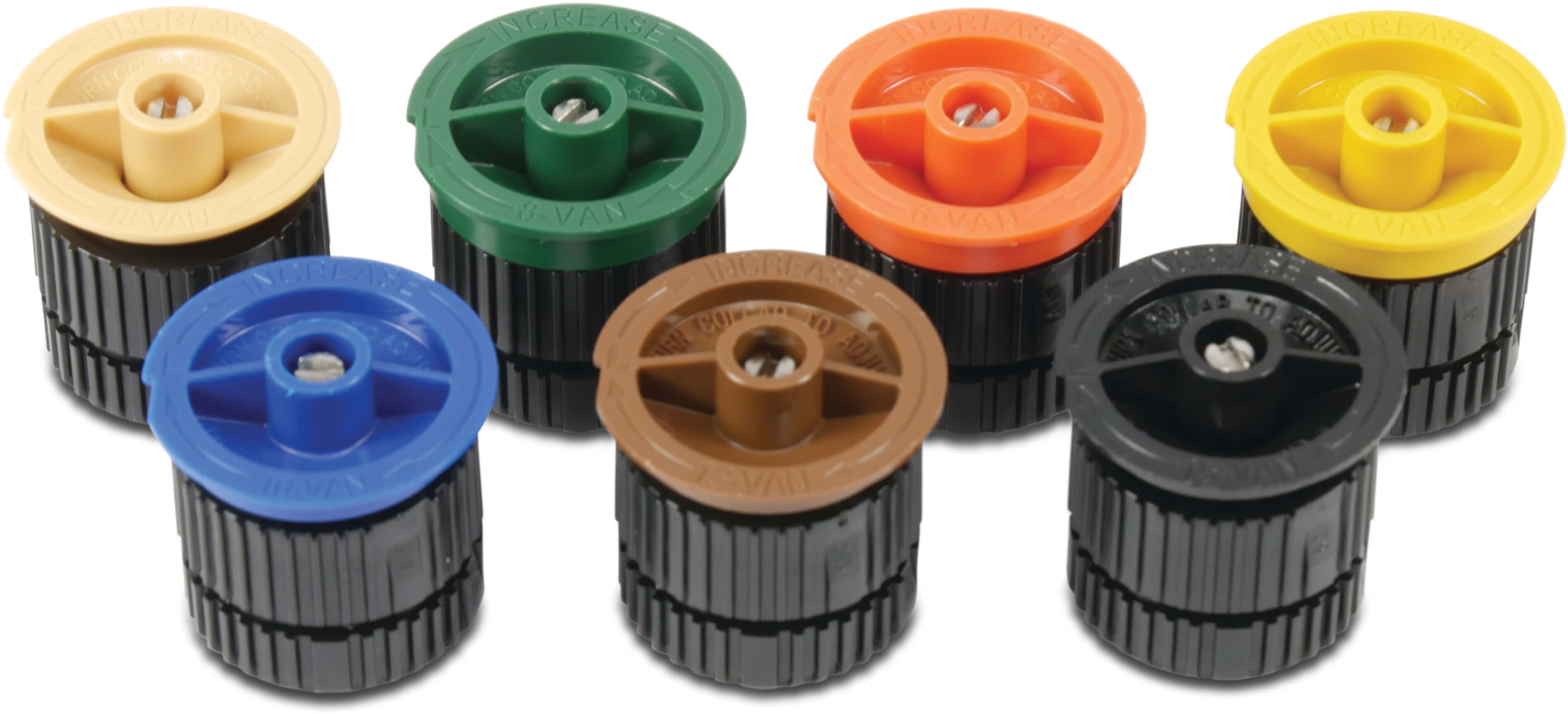

Rain Bird Spray head, type VAN is used with the 1800 series pop up and can be used in places with odd distances or were special jet heights are required.
The 4-VAN and 6-VAN series have a 0° trajectory, the 8-VAN has a 5° trajectory and the 10-VAN has a 10° trajectory which is considerably lower than the 24° trajectory of the HE-VAN nozzles. Additionally, for small distances of 0.9m radius, the 4-VAN is at 1.0bar to 5.5m radius and for the 18-VAN at 2.1bar. The top is colored for easy radius and arc identification. Pressure ranges from 1 to 2.1 bar and the spacing ranges from 0.9m to 5.5m.
Rain Bird is highly regarded for their professional quality
