DAB Pressure set PP 1" female thread 7,5bar 4,8A 230VAC green type ESYBOX Mini 3
Product information
Includes a self-priming multi-stage pump, management inverter electronics, pressure and flow sensors, adjustable high resolution LCD display with 1 litre built-in expansion vessel, and cartridge check valve.
Suitable for use with potable water, in domestic systems and gardening applications.
Pressure Set Point adjustable from 1 up to 5.5 bar
Max. Suction Depth: 8 metres
Installation: Horizontal or vertical fixed position
Suitable for use with potable water, in domestic systems and gardening applications.
Pressure Set Point adjustable from 1 up to 5.5 bar
Max. Suction Depth: 8 metres
Installation: Horizontal or vertical fixed position
| Material impeller | noryl |
|---|---|
| Pump body | PP |
| Voltage | 230VAC |
| Colour | green |

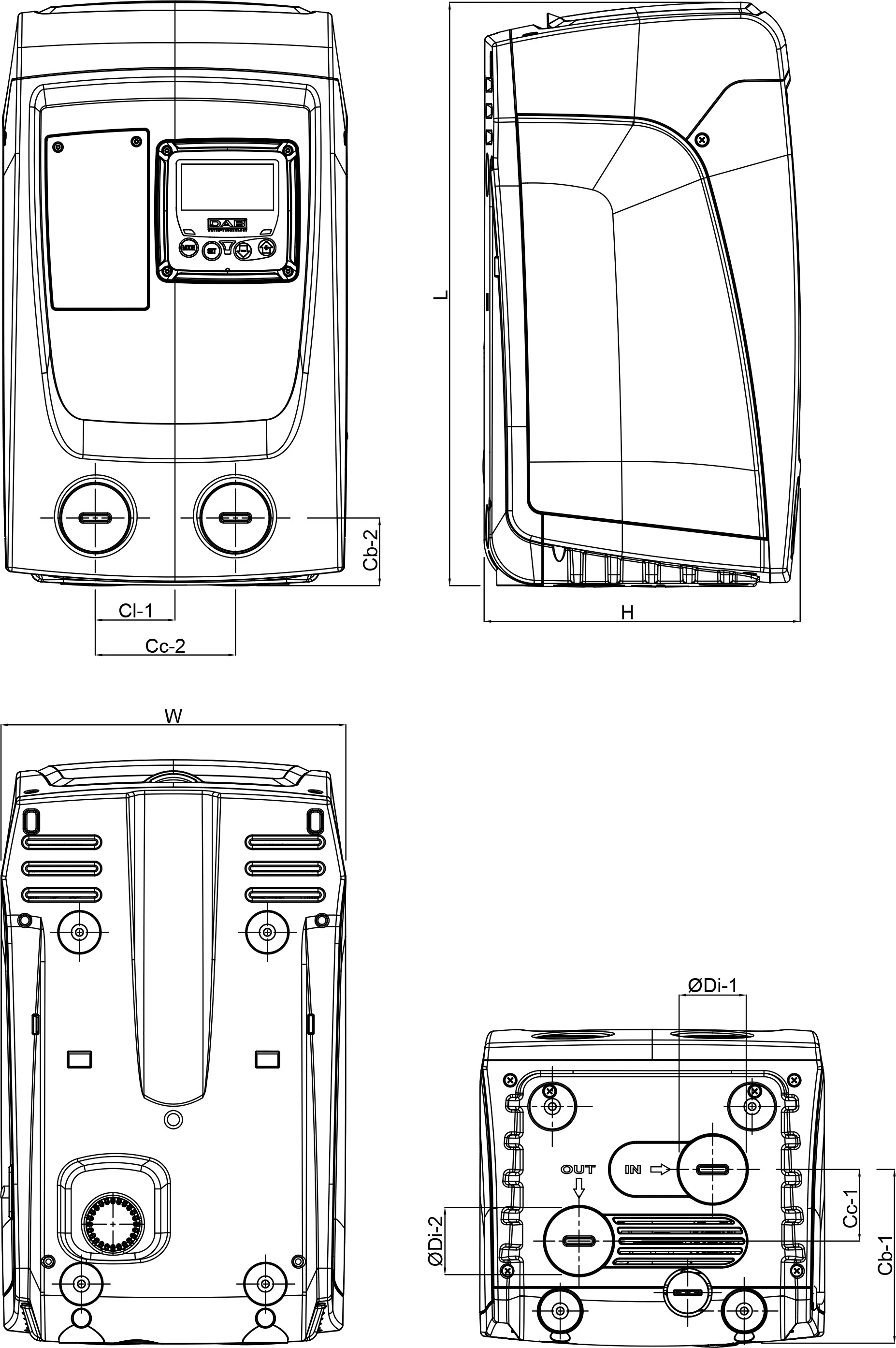

Manuals & drawings
